Wooden Camera 288400 LW 15mm Baseplate (Canon C70)

(No reviews yet) Write a Review
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
  • Wooden Camera 288400 LW 15mm Baseplate (Canon C70)
SKU:
WOD-288400-90
Manufacturer Part:
288400
UPC:
606184860135
Condition:
New
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
$499.00
Availability:
Usually Ships in 3-5 Business Days
Quantity:

Description

Wooden Camera LW 15mm Baseplate (Canon C70)
Product Highlights:
  • Designed for Canon C70 Camera
  • 15mm LWS Rod Baseplate Support/Riser
  • Quick Release Arca-Type Dovetail Plate
  • 2 x ARRI Rosettes for Optional Handgrips
  • 1/4"-20 & 3/8"-16 ARRI Accessory Threads
  • Vertical Lens Support Post Adapter Port
  • Quick Dovetail Mounting Plate on Bottom
  • 3/8"-16 Camera Screw with Safety Pin
  • 15mm Ports Secure with Locking Levers
  • Durable Aluminum Construction
  • Wooden Camera 15mm LWS Baseplate for Canon C70
  • Arca-Type Dovetail Camera Plate
  • Quick Dovetail Plate
  • Limited 1-Year Manufacturer Warranty
Wooden Camera LW 15mm Baseplate (Canon C70)
Wooden Camera 288400 LW 15mm Baseplate (Canon C70)

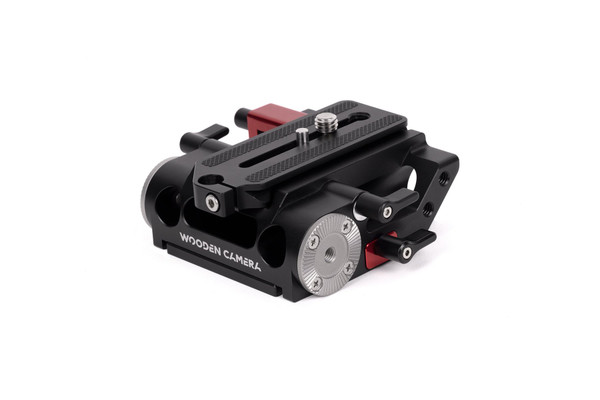

Add a quick release baseplate and additional accessories to your Canon C70 rig with this 15mm LWS Baseplate from Wooden Camera. The durable aluminum baseplate functions as both a riser and a 15mm LWS rod support, and it features multiple accessory attachment points.

The riser baseplate features an Arca-type quick release dovetail plate with a 3/8"-16 camera screw and a push/pull safety pin to keep your camera from twisting. On the front of the dovetail is a vertical rod port that allows you to add an optional vertical lens support.

The base features standard 15mm rod ports that secure with locking levers, multiple 1/4"-20 threads, and one 3/8"-16 ARRI-style accessory mount for additional gear. There is an ARRI-style rosette with an M6 thread on either side for adding a handgrip or extension arm. The bottom of the plate features an ARRI-standard dovetail mount and a quick dovetail plate with multiple threads to mount the baseplate onto a bridge plate or rig.

Compatibility
Canon C70 camera

Also compatible with but not limited to:
Wooden Camera Quick Release Bridgeplate (19mm) 277000
Wooden Camera Quick Release Bridgeplate (15mm Studio) 277100



Wooden Camera LW 15mm Baseplate (Canon C70)
Suport Type Baseplate, Rod Support System
Grip Type None
Camera Compatibility Canon EOS C70
Mounting
Rod Standard 15 mm LWS / 60 mm Spacing
Battery Plate Type None
Accessory Mounting Baseplate: Multiple x 1/4"-20 Female Thread, 1 x ARRI Anti-Twist 3/8"-16 Female Thread
Camera Mounting Arca-Type Plate with 3/8"-16 Male Screw
Tripod Mounting Baseplate: 1/4"-20 Female Thread, 3/8"-16 Female Thread, ARRI Dovetail, ARRI Dovetail Clamp
Rod Ports Baseplate: 2 x 15 mm Rod Port
Shoe Mounting None
Rosettes 2 x ARRI Rosette w/ M6 Female Thread
General
Materials Aluminum
Weight 400g (0.8lbs)
Dimensions 90 x 120 x 40mm (3.54 x 4.72 x 1.5 in)
Packaging Info
Package Weight 0.91 lb
Box Dimensions (LxWxH) 5.1 x 4.75 x 1.95"
