Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
Product Highlights:
  • Supports New 6 GHz Frequency Band
  • Transmit Video up to 750' Line of Sight
  • HDMI and 12G-SDI Inputs and Outputs
  • Transmit up to 4K60 Video
  • Gold Mount Battery Plate on RX
  • 10-Bit 4:2:2 Support, No Delay
  • Compatible with Bolt 6/4K TX/RX Units
  • AES-256 Encryption, 7 Antennas
  • Bluetooth Mobile App, Spectrum Analyzer
  • Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
  • Bolt 6 XT 750 12G-SDI/HDMI Transmitter (Gold Mount)
  • Bolt 6 XT 750 12G-SDI/HDMI Receiver (Gold Mount)
  • 2 x 2-Pin to D-Tap Power Cable (18")
  • Micro-USB to USB Type-A Cable (36")
  • 2 x HDMI Type A to HDMI Type A Cable (18")
  • 2 x BNC to BNC Cable (18")
  • 2-Pin to 2-Pin Cable for ALEXA (18")
  • 18W AC Adapter with Cable (6')
  • 2 x Bolt Battery Cover (Front)
  • 2 x Bolt Battery Cover (Rear)
  • 1/4"-20 Light Stand Adapter
  • Shoe Adapter
  • Screw Set
  • Allen Wrench
  • Wooden Camera Monitor Mount
  • Carry Case
  • 9 x Antenna
  • Limited 1-Year Warranty
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
Teradek 10-2300-G Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)

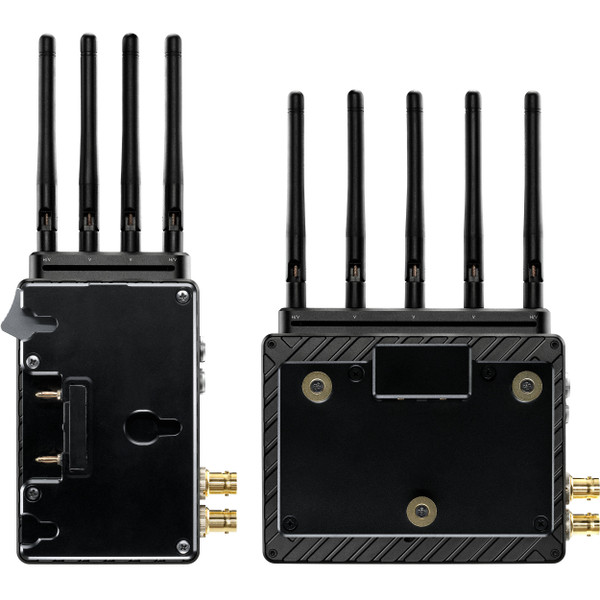

Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A Gold mount battery plate is included to power the receiver with a professional Gold mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K60 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

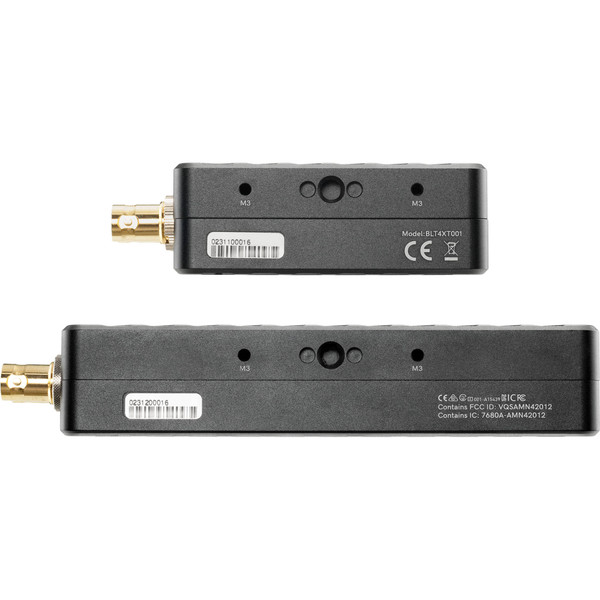

The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.

Key Features

  • Transmitter/receiver set cross-compatible with all Bolt 6 series over 6 GHz spectrum and Bolt 4K series devices over 5 GHz signal spectrum
  • The receiver features a Gold mount battery plate
  • Input and output up to 4K video via HDMI and 12G-SDI; transmit up to 4K60 video
  • Transmit video over the 6 GHz frequency band
  • Improved "long-range" mode
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Receiver supports up to 4K60 video and outputs 12G-SDI and HDMI
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Smaller and lighter chassis design than other Bolt transmitters
  • Transmit to up to six Bolt 6 or six Bolt 4K series receivers
  • AES-256 encryption support and RSA 1024 key pairing support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek XT 750 Specs
Antenna Ports Transmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A (HDMI 2.0) Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 2.0) Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x Micro-USB Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94/50
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 28 VDC
Battery Type Receiver: 1 x Gold Mount
Power Consumption Transmitter: 20 W
Receiver: 18 W
Mounting
Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum
Dimensions Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm
Weight Transmitter: 12.1 oz / 344 g
Receiver: 15.2 oz / 430 g
