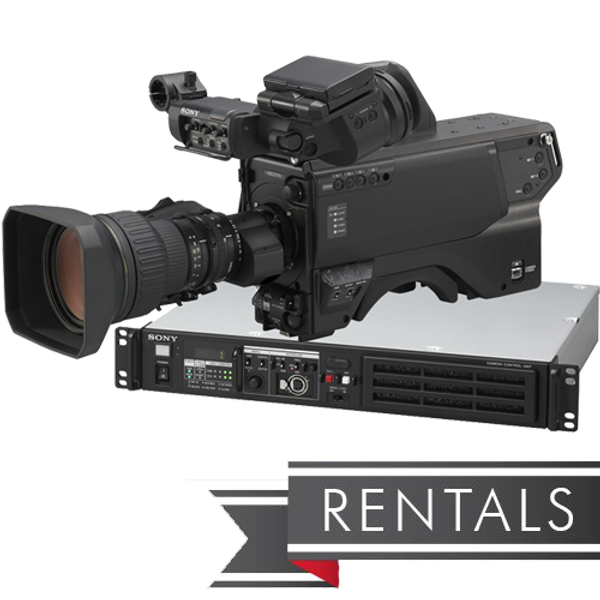

Sony HDC-3170 Pro Package
HD Digital Triax Portable Camera System
Rental Includes:
(1) HDC-3170 Camera Body
(1) ENG style eyepiece viewfinder
(1) Sony HDCU-3170 Camera Control Unit
(1) SonyHDVF-L750 or equivalent HD color viewfinder monitor
(1) Fujinon XA17x7.6BERM or equivalent HD servo zoom lens w/ focus chuck
(1) Manual remote focus controller w/ whip
(1) Servo zoom controller
(1) VCT-18 quick release tripod plate
(1) Sony RCP-1500 or equivalent remote control panel w/ 15ft control cable
(1) Mono shotgun microphone
(1) 300ft triax control cable
(1) 150mm or 100mm fluid head tripod w/ dual panhandles
Rental Includes:
(1) HDC-3170 Camera Body
(1) ENG style eyepiece viewfinder
(1) Sony HDCU-3170 Camera Control Unit
(1) SonyHDVF-L750 or equivalent HD color viewfinder monitor
(1) Fujinon XA17x7.6BERM or equivalent HD servo zoom lens w/ focus chuck
(1) Manual remote focus controller w/ whip
(1) Servo zoom controller
(1) VCT-18 quick release tripod plate
(1) Sony RCP-1500 or equivalent remote control panel w/ 15ft control cable
(1) Mono shotgun microphone
(1) 300ft triax control cable
(1) 150mm or 100mm fluid head tripod w/ dual panhandles
Sony HDC-3170 HD Digital Triax Portable Camera System
Sony HDC-3170 HD Digital Triax Portable Camera System
Raising the standard in creative flexibility
The HDC-3170 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the versatility of digital triax transmission.
Next-generation imaging
Capture premium pictures with the world's first 2/3-inch HD CMOS sensor with global shutter technology that eliminates the "jello effect" and banding noise. This allows the HDC-3170 to capture pristine images with low noise and excellent sensitivity (F12 at 1080/59.94i or F13 at 1080/50i).
More format flexibility
The HDC-3170 can output 3G-SDI signals in a range of formats right up to 1080/50p. So you can benefit from maximum production convenience — and your viewers can enjoy premium picture quality.
Next-generation digital triax transmission
The HDC-3170 supports the latest third generation digital triax-based camera/CCU transmission system. This can carry high-quality Full HD images over distances up to 1,800m* while integrating smoothly into current triax infrastructures.
*With 0.57 in diameter triax cable. Maximum transmission distance varies with camera system configuration.
Get the look
Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key saturation ensures rich, vibrant colors in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.
Features:
- Supports digital triax-based camera/CCU transmission system
- High-quality Triax Full HD images over distances up to 1,800m
- 3G-SDI output
- 2/3" Type CCD Sensor
- Large Lens Support via Optional Adapters
- Servo-controlled ND filter
- Records 1080/50i, 1080/59.94i 720/50p,720/59.94p 1080/50p, 1080/59.94p
- SD Down Converter
- Servo-controlled ND filter
- 7-inch OLED viewfinder
| General |
|---|
| Power requirements |
DC 240 V, 1.05 A (max.) |
| Operating temperature |
-4°F to 113°F (-20°C to +45°C) |
| Storage temperature |
-4°F to 140°F (-20°C to +60°C) |
| Mass |
Approx. 11 lb 0.4 oz (5.0 kg) |
| Imager |
2/3-inch type CMOS sensor with global shutter |
| Method |
3-CMOS, RGB |
| Sensitivity |
F12 with 1080/59.94i
F13 with 1080/50i
(at 2,000 lx with 89.9% reflectance) |
| Spectrum system |
F1.4 prism |
| Built-in filters |
1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
| CCU |
Triax connector (x1) |
| LENS |
12-pin (x1) |
| VF |
20-pin (x1) |
| MIC 1 IN |
XLR 3-pin, female (x1) |
| AUDIO IN CH1, CH2 |
XLR 3-pin, female (x1 each)
AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced
AUDIO switch for LINE: 0 dBu, balanced |
| INTERCOM 1, INTERCOM 2 |
XLR 5-pin, female (x1) |
| EARPHONE |
4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard) |
| DC IN |
XLR 4-pin (x1), DC 10.5 to 17 V |
| DC OUT |
4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹ |
| SDI 1 |
SDI 1 |
| SDI 2 |
No |
| SDI MONI |
BNC (x1) |
| TEST OUT |
BNC (x1) |
| PROMPTER/GENLOCK |
BNC (x1) PROMPTER 1 Vp-p, 75 Ω
GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD:
Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) |
| PROMPTER2 |
No |
| RET CTRL |
6-pin (x1) |
| REMOTE |
8-pin (x1) |
| TRACKER |
12-pin (x1) |
| CRANE |
No |
| USB |
USB 2.0 Type A 4-pin (x1) (for connecting USB drive) |
| NETWORK TRUNK |
No |
| Supplied accessories |
Before Using This Unit (1), Operating Instructions (CD-ROM) (1),
Cable clamp belt (1 set), Screws (+B3×8) (2),
Attached label (1), Camera number label (1) |
