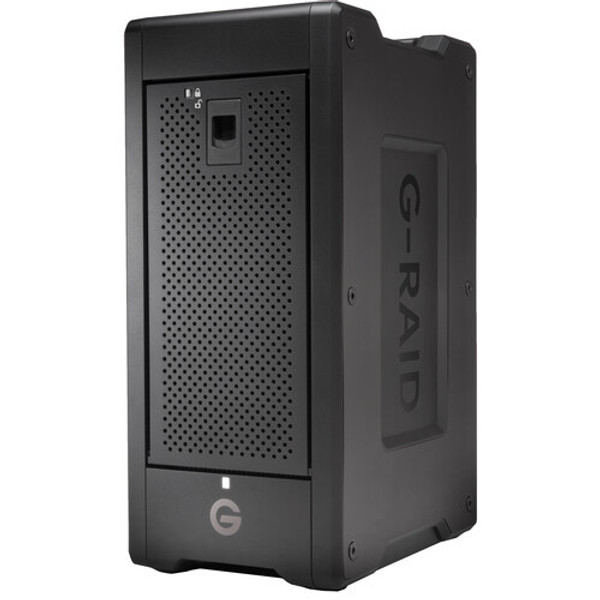

SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)

The cookie settings on this website are set to 'allow all cookies' to give you the very best experience. Please click Accept Cookies to continue to use the site.

SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)

(No reviews yet) Write a Review
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
SKU:
SND-SDPH48H096TNBAAB-90
Manufacturer Part:
SDPH48H-096T-NBAAB
Condition:
New
Weight:
33.69 LBS
Shipping:
Calculated at Checkout
$7,299.99
Availability:
Special Order - Subject to Availability
Quantity:

Description

  • SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • Thunderbolt 3 Cable
  • IEC Power Cable
  • Limited 5-Year Warranty
SanDisk Professional 96TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 12TB, Thunderbolt 3 & USB 3.2 Gen 2)
  • 8 x 12TB Ultrastar Enterprise 3.5" HDDs
  • 8 x SATA III 3.5" Drive Bays
  • 2 x Thunderbolt 3 | 1 x USB 3.2 Gen 2
  • RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
  • Preconfigured as RAID 5
  • Hardware RAID Controller
  • Read Speeds up to 1900 MB/s
  • Write Speeds up to 2000 MB/s
  • Preformatted for macOS 10.15 and Later
  • Windows Compatible via Reformat

SanDisk Professional SHUTTLE 8 External HDD Overview

Designed so content creators can have a premium solution for their demanding workflows, whether on location or in the studio, the 96TB G-RAID Shuttle 8 8-Bay RAID Array from SanDisk Professional delivers powerful RAID storage in a design that's easy to transport. Equipped with an overall capacity of 96TB, that is made of up 8 x 12TB 7200 rpm Ultrastar Enterprise-class hard drives, the Shuttle 8 delivers read speeds of up to 1900 MB/s and write speeds of up to 2000 MB/s, which is more than enough to drive multi-stream 4K, 8K, and VR workflows. In terms of connectivity, this array is equipped with two 40 Gb/s Thunderbolt 3 ports and one 10 Gb/s USB Type-C port. While host connectivity is achieved using one of the Thunderbolt 3 ports, or the USB Type-C port, the second Thunderbolt 3 port remains available for daisy-chaining up to five additional devices, including drives, 4K displays, and more, all through a single cable connection.

SanDisk Professional built the G-RAID Shuttle 8 with a hardware RAID controller that supports RAID 0, 1, 5, 6, 10, 50, and 60, each of which provides performance, data redundancy, or a combination of both. For those who do not need a RAID, JBOD is also available. The system comes preconfigured as RAID 5 and formatted for macOS 10.15 and later, although the system may be reformatted for other RAID modes, as well as Windows 10. Included is a Thunderbolt 3 cable and an IEC power cable, while protection is provided by a limited 5-year warranty.

General Features

Colossal Capacity, Transportable Design

With a capacity of 96TB of high-powered RAID storage in an easy-to-transport design, content creators get a premium solution for their demanding workflows, whether on location or in the studio.

High-Speed Data Transfers

With read speeds f up to 1900 MB/s, write speeds of up to 2000 MB/s, and support for multi-stream 4K, 8K, and VR workflows, you can quickly move or copy all your media so you can spend less time waiting and more time creating with high-speed data transfer using the 40 Gb/s Thunderbolt 3 or 10 Gb/s USB Type-C ports.

Built-In Hardware RAID

For balanced performance, the G-RAID Shuttle 8 comes formatted for macOS 10.15 and later and is configured as RAID 5. It also supports RAID 0, 1, 6, 10, 50, 60, and JBOD for greater flexibility and may be reformatted for Windows 10.

Removable, Reliable 7200 rpm Ultrastar Enterprise-Class Drives

For all your demanding workloads and mission critical footage, you can depend on the power and enhanced reliability of eight removable Ultrastar Enterprise-class 7200 hard drives inside.

Daisy-Chaining for up to 5 Additional Devices

With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.

Limited 5-Year Warranty

Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID Shuttle 8 for years to come.


SanDisk Professional SHUTTLE 8 External HDD Specs

General
Number of Bays 8 x 3.5"
Connection 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
Compatible Drive Interface SATA III
Form Factor Desktop
Maximum RAID Transfer Rate 1900 MB/s (Read)
2000 MB/s (Write)
RAID Modes RAID 0, 1, 10, 5, 50, 6, 60, JBOD
Operating System Support Windows, macOS/OS X
OS Compatibility Windows 10 or Later
macOS 10.15 or Later
Drives
Total Raw Capacity 96 TB (8 x 12 TB)
Rotational Speed 7200 rpm
Interface SATA III
Initial RAID Configuration RAID 5
Pre-Format APFS
Electrical
Power Source AC Adapter
Physical
Dimensions (W x H x D) 6.9 x 15.2 x 9.6" / 17.5 x 38.5 x 24.5 cm
Weight 24.23 lb / 10.99 kg
Packaging Info
Package Weight 33.69 lb
Box Dimensions (LxWxH) 20.3 x 15.9 x 12.5"
