RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)

RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)

Write a Review
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
  • RED 710-0305 DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
SKU:
RED-7100305-90
Manufacturer Part:
Availability:
Manufacturer Backorder
Shipping:
Calculated at Checkout
$19,500.00
-->
Quantity:

Description

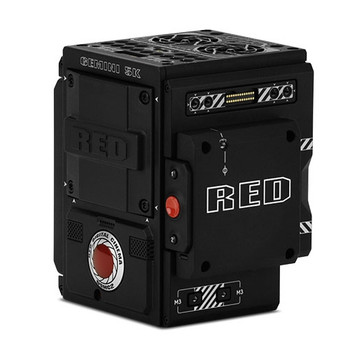

RED DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
Product Highlights:
- 5K Super 35mm CMOS Sensor
- 5120 x 3000 Recording up to 75 fps
- REDCODE RAW, ProRes, and DNx Recording
- High-Speed Recording up to 300 fps in 2K
- Records to RED MINI-MAG Media
- Uses DSMC2 Accessories
- Interchangeable Lens Mounts
- Aluminum Alloy Construction
RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor
- (1) DSMC2 Standard Optical Low-Pass Filter
- (1) Case for DSMC2 Camera BRAIN
- (1) Limited 2-Year Warranty
RED DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
RED DSMC2 BRAIN with Gemini 5K S35 Sensor (Standard OLPF)
The RED EPIC-W BRAIN with Gemini 5K S35 Sensor brings the EPIC name back to the forefront, featuring their Gemini dual ISO 5K Super 35 sensor. It has a standard mode and a low light mode, both at 5K resolution which allows for capture at up to 96 fps. The Gemini allows for high-resolution 5K recording while using classic cinema lenses designed for the Super 35 film format. It also allows 4K recording using the whole sensor.

REDCODE RAW is the format of choice for the EPIC-W. RED's versatile raw codec uses wavelet compression to reduce data rates while maintaining a visually lossless image rendering. This efficient codec can be edited on many available NLE software programs without transcoding, though if you prefer a proxy workflow, ProRes or DNx files can be recorded simultaneously to the MINI-MAG media. Lowering the recording resolution allows the sensor to capture higher frame rates for dramatic slow-motion footage. The EPIC-W uses sensor windowing to record slow motion in lower resolutions, requiring wider lenses to compensate for the additional crop. All the EPIC-W's power is enclosed in a relatively small body comprised of magnesium and aluminum. The EPIC-W's size, or lack thereof, makes it versatile.
Image Sensor
Image Sensor Size 30.72 x 18.00 mm (Full-Frame)
Sensor Type CMOS
Sensor Resolution 5120 x 3000
Color Filter Bayer
Shutter Type Rolling Shutter
ISO 800 (Native)
3200 (Native)
Advertised Dynamic Range 16.5 Stops
Signal-to-Noise Ratio Not Specified by Manufacturer
Lens Mount PL Mount
Lens Communication Yes, Cooke /i
Built-In ND Filter None
Built-In Microphone Type Stereo
Recording Media None
Internal Recording
Raw Recording REDCODE RAW:
5120 x 3000 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60 fps
Recording Modes ProRes422HQ 4:2:2:
4096 x 2160 at 23.98, 24, 25, 29.97 fps
ProRes422 4:2:2:
4096 x 2160 at 24, 25, 29.97 fps
2048 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
ProRes422LT 4:2:2:
4096 x 2160 at 23.98, 24, 25, 29.97 fps
2048 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
ProRes422HQ 4:2:2:
2048 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
DNxHR 4:2:2 12-Bit:
4096 x 2160 at 23.98, 24, 25, 29.97 fps
2048 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
DNxHR 4:2:2 8-Bit:
4096 x 2160 at 23.98, 24, 25, 29.97 fps
DNxHD 4:4:4 10-Bit:
1920 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
DNxHD 4:2:2 10-Bit:
1920 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
DNxHD 4:2:2 8-Bit:
1920 x 1080 at 23.98, 24, 25, 29.97, 48, 50, 59.94, 60, 120 fps
Audio Recording 2-Channel 24-Bit 48.0 kHz
Interfaces
Video Connectors None
Audio Connectors None
Wireless Interfaces Wi-FiControl
Touchscreen No
Power
Power Connectors None
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Operating Humidity 0 to 85%
Storage Humidity 0 to 85%
General
Accessory Mount Not Specified by Manufacturer
Tripod Mounting Thread 1/4"-20, 3/8"-16
Material of Construction Aluminum Alloy
Dimensions 5.66 x 4.94 x 4.13" / 143.85 x 125.5 x 105 mm
Weight 3.4 lb / 1.54 kg
