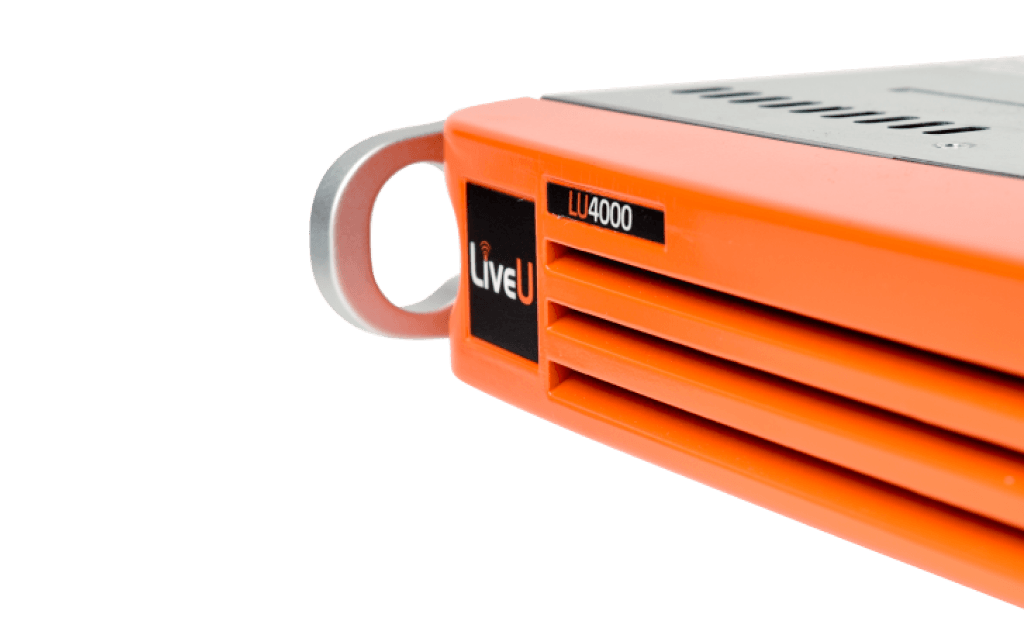

LiveU LU4000 Single Output 4K / Quad HD Decoder Server
Product Highlights:
- 1 RU 4K / Quad HD Decoder Server
- Receive H.264 Video, Output via SDI/IP
- Output 1 x 12G-SDI or 4 x 3G-SDI Feed
- Adjustable Quality and Bitrate
- Dual Gigabit Ethernet Ports
- Designed for Studio Operation
- LiveU LRT, RTMP, NDI, MPEG-TS Support
- Works with LiveU Central Cloud Platform
- LiveU LU4000 Single Output 4K / Quad HD Decoder Server
- Power Supply
- Limited 1-Year Manufacturer Warranty
LiveU LU4000 Single Output 4K / Quad HD Decoder Server
LiveU LU10-SV-1UL04-4K LU4000 Single Output 4K / Quad HD Decoder Server
Part of your workflow
The LU4000 is an essential part of your live video workflow,
acting as your in-studio or on-site source for live feeds coming
from any LiveU field unit or from the LiveU Matrix cloud video distribution platform.
Turn your LU4000 into a mobile receiver
Transmit live feeds from the field directly to your production truck as part of a cost-effective on-site production solution.
Cut costs and reduce set-up times by eliminating the need to set up line-of-sight infrastructure, cables, and internet sourcing.
Multi-purpose decoder
The LU4000 supports a single 4K transmission (over 12G-SDI) as well as up to four full HD independent transmissions from different units (over 4 x 3G/HD/SD-SDI). It also supports multi-camera productions: receiving and playing out up to four fully synced feeds from a single LU800 unit.
Any output type
The LU4000 can receive multiple preview feeds, allowing the remote operator to select the feed/s played out for local consumption. Built for maximum workflow flexibility, the LU4000 offers multiple output options including SDI, NDI, RTMP, MPEG-TS, and SRT.
Intuitive cloud-based management
The LU4000 allows operators to monitor, control, and manage live streams via LiveU Central, the unified cloud-based management platform for LiveU’s field and studio units.
LiveU Matrix enabled
The LU4000 is Matrix enabled, allowing you to seamlessly share your live feeds with multiple internal and cross-organizational end-points, using cost-effective and reliable IP-based distribution over the public internet.
Looking for a cloud-based production?
No need for a physical server! LiveU Cloud Connect can serve as your main video hub, receiving live feeds from the field and outputting them to any IP destination (Social/CDN) or into your cloud-based production platforms. Supported protocols include: NDI, RTMP, MPEG-TS, and SRT.
| LiveU LU4000 Specs |
|---|
| Inputs / Outputs |
|---|
| Video I/O |
4 x BNC (3G-SDI) Output
1 x BNC (12G-SDI) Output
|
| Embedded Audio |
LAN (RJ45)/SDI/Wireless
|
| Audio I/O |
None
|
| Power I/O |
1 x Proprietary (12 VDC) Input
|
| Other I/O |
2 x RJ45 (Gigabit Ethernet) Input/Output
|
| Wireless |
|---|
| Wi-Fi |
None
|
| Bluetooth |
None
|
| IP Decoding |
|---|
| IP Video |
H.264: 1280 x 720 to 3840 x 2160 at 24p, 25p, 30p, 50p, 60p
|
| Transport Protocols |
TCP/IP
|
| Power |
|---|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Environmental |
|---|
| Environmental Protection |
None
|
