DJI Matrice 300 RTK + H20 Lens Kit + Shield Basic

DJI Matrice 300 RTK + H20 Lens Kit + Shield Basic

Product Highlights:

• 15 km Max Transmission
• 55-min Max Flight Time
• 6 Directional Sensing & Positioning
• Primary Flight DisplayIP45 Rating
• Advanced Dual Control
• Hot-swappable Battery-20°C to 50°C Operating Temperature
• UAV Health Management System
• Up to 3 payloads simultaneously
• Supported DJI Gimbals: Zenmuse XT2/XT S/Z30/H20/H20T

• Matrice 300 RTK H20 Camera Shield Basic
• NO BATTERIES
• NO CHARGING STATION

DJI Matrice 300 RTK + H20 Lens Kit + Shield Basic



A NEW STANDARD FOR THE COMMERCIAL DRONE INDUSTRY
The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

IMPROVED TRANSMISSION SYSTEM
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

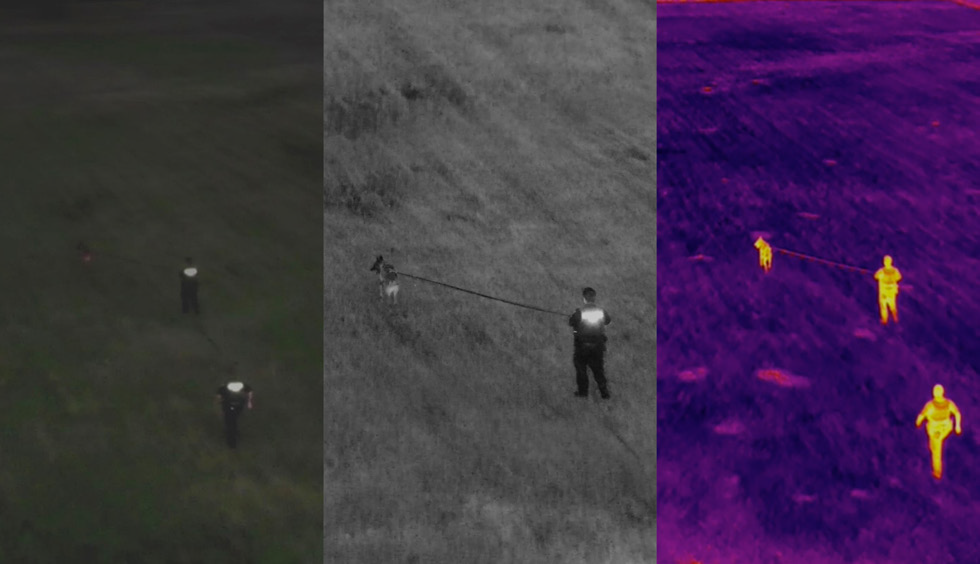

Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.

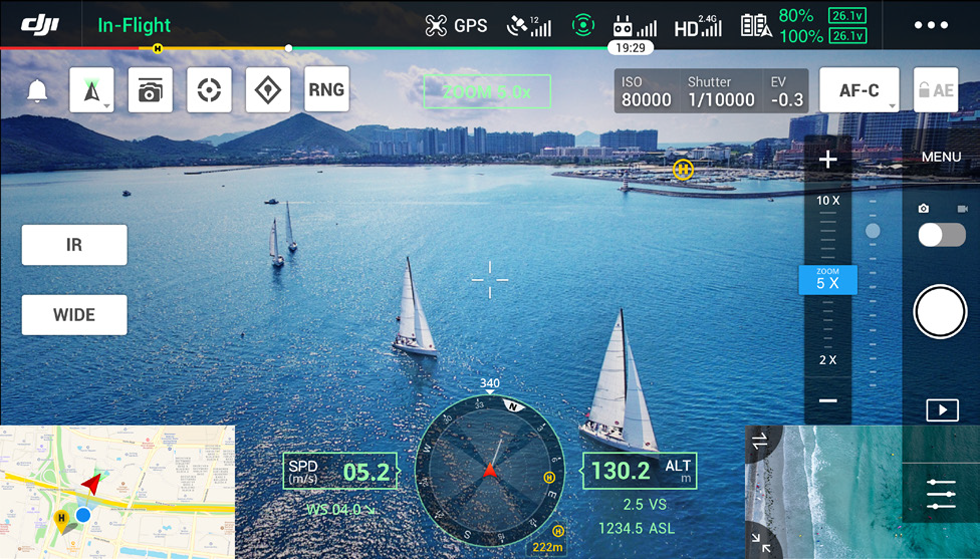

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

INTELLIGENT WAYS TO COLLECT DATA
AI SPOT-CHECK
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

HIGH-RES GRID PHOTO
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

ENHANCED FLIGHT PERFORMANCE
The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

REDUNDANCY SYSTEMS FOR SAFER FLIGHTS
The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Advanced Dual Control
Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.

ZENMUSE H20 SERIES
“H” For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

ALL THE SENSORS YOU NEED – IN ONE
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Advantage level	M300 RTK	Description	Specs/Features
Middle	Diagonal Wheelbase	≤900mm	895mm
Middle	Packing Box Size	≤800mm×600mm×400mm	735mm×591mm×342mm
Strong	Dimensions（Folded, propellers included）	≤450mm×450mm×450mm	430mm×420mm×430 mm
Middle	Max Takeoff Weight	≤9kg	9 kg
Middle	Max Payload	≥2.5kg	2.7 kg
Strong	Hovering Accuracy (GPS)	Vertical≤0.5 m, Horizontal≤1.5 m	Vertical=± 0.5 m, Horizontal=± 1.5 m
Strong	Hovering Accuracy (Downward Vision)	Vertical≤0.1m, Horizontal≤0.3 m	Vertical=± 0.1 m, Horizontal=± 0.3 m
Strong	GNSS	GPS+GLONASS+BeiDou+Galileo	GPS+GLONASS+BeiDou+Galileo
Strong	RTK	The aircraft supports RTK positioning and orientation capabilities, and can fly safely in an environment where the compass is interferenced.	The aircraft supports RTK positioning and orientation capabilities, and can fly safely in an environment where the compass is interferenced.
Strong	Hovering Accuracy (RTK)	Vertical≤0.1m, Horizontal≤0.2 m	Vertical=± 0.1 m, Horizontal=± 0.1 m
Middle	Max Ascent Speed	≥6 m/s	6 m/s
Strong	Max Descent Speed	≥5 m/s	5 m/s
Strong	Max Descent Speed (tilt)	≥7 m/s	7 m/s
Middle	Max Speed	≥20 m/s	23 m/s
Strong	High Altitude Propeller	Aircraft supports to be equipped with High Altitude Propeller, can fly in high altitude application scenarios with low flight noise.	Aircraft supports to be equipped with High Altitude Propeller, can fly in high altitude application scenarios with low flight noise.
Strong	Max Service Ceiling Above Sea Level	≥7000m	7000 m (with 2195 propellers)
Strong	Max Wind Resistance	Level 7 wind	15 m/s
Strong	Max Flight Time (without payload)	≥55 min	55 min
Strong	Hardware Architecture Design	Folding design. Support to be unfolded and taken off in 3 minutes.	Folding design. Support to be unfolded and taken off in 3 minutes.
Strong	Operating Temperature	-20°C to 50°C	-20°C to 50°C
Strong	Vision System	The aircraft is equipped with binocular vision systems on the front, back, up, down, left and right ride. When nearby obstacle is detected, the aircraft can prompt a warning message through the ground station software; When the distance to the obstacle is very close, the aircraft is able to actively brake.	The aircraft is equipped with binocular vision systems on the front, back, up, down, left and right ride. When nearby obstacle is detected, the aircraft can prompt a warning message through the ground station software; When the distance to the obstacle is very close, the aircraft is able to actively brake.
Strong	Vision System	The maximum detection range of the vision system is at least 30m	Forward/Backward/Left/Right: 0.7-40m Upward/Downward: 0.6-30m
Strong	Infrared ToF Sensing System	The aircraft supports 6 Directional (front, back, up, down, left and right ride) TOF sensor.	The aircraft supports 6 Directional (front, back, up, down, left and right ride) TOF sensor.
Middle	Landing protection	During autonomous landing process, drone can detect the below terrain. When the terrain is uneven ground or water surface, aircraft keeps hovering, and at the same time sends a warning message to the user through the ground station software	During autonomous landing process, drone can detect the below terrain. When the terrain is uneven ground or water surface, aircraft keeps hovering, and at the same time sends a warning message to the user through the ground station software
Strong	Redundancy Sensor	Aircraft supports dual IMU, dual barometer and dual compass	Aircraft supports dual IMU, dual barometer and dual compass
Strong	FPV Camera	The aircraft is equipped with FPV camera, resolution should be not lower than 720p	The aircraft is equipped with FPV camera, resolution is 960p
Strong	Dual Downward Gimbals	Aircraft supports to be equipped with Dual Downward Gimbals	Aircraft supports to be equipped with Dual Downward Gimbals
Strong	Single Upward Gimbal	Aircraft supports to be equipped with upward gimbal	Aircraft supports to be equipped with upward gimbal
Strong	Ingress Protection Rating	IP45	IP45
Middle	Beacon	Support Beacon, and pilot can control the Beacon on-off through App, to improve the flight safety at night	Support Beacon, and pilot can control the Beacon on-off through App, to improve the flight safety at night
Strong	Discreet Mode	Support to turn off arm LEDs to perform covert tasks	Support to turn off arm LEDs to perform covert tasks
Strong	Encrypted video transmission	Video transmission link is encrypted by AES-256 algorithm	Video transmission link is encrypted by AES-256 algorithm
Strong	Max Transmitting Distance (unobstructed, free of interference)	Not less than 15 km（FCC)	15 km（FCC）
Strong	Video Transmission Resolution	Support 1080p Video Transmission	Support 1080p Video Transmission
Middle	Dual-band Transmission Link	Support 2.4GHz and 5.8GHz dual-band transmission link, when one channel is blocked, the aircraft should be able to switch to another channel for transmmission	Support 2.4GHz and 5.8GHz dual-band transmission link, when one channel is blocked, the aircraft should be able to switch to another channel for transmmission
	Remote Controller
Strong	Remote Controller	Remote controller supports to receive FPV camera view and main gimbal camera view simultaneously.	Remote controller supports to receive FPV camera view and main gimbal camera view simultaneously.
Strong	Remote Controller	The remote controller supports both built-in battery and external replaceable battery	The remote controller supports both built-in battery and external replaceable battery
Strong	Remote Controller	The remote controller supports 5.5-inch display screen with a resolution of 1080p, brightness of at least 1000 cd/m2	The remote controller supports 5.5-inch display screen with a resolution of 1080p, brightness of at least 1000 cd/m2
Middle	Remote Controller	Support to output camera view or remote controller screen view, through HDMI interface	Support to output camera view or remote controller screen view, through HDMI interface
Middle	Remote Controller	Support to connect Android/iOS tablet	Support to connect Android/iOS tablet
	Software Function
Strong	AirSense	Able to receive ADS-B broadcast information of civil aviation passenger aircraft, and can send warning message about nearby civil aviation passenger aircraft to user through ground station software	Able to receive ADS-B broadcast information of civil aviation passenger aircraft, and can send warning message about nearby civil aviation passenger aircraft to user through ground station software
Strong	Advanced Dual Control	Aircraft supports to be connected with two remote controllers simultaneously. Both of the two remote controllers can be used to control the aircraft and the gimbal. The control authority can be flexibly switched between the two remote controllers. Besides, if the aircraft control authority is locked with one remote controller, the other remote controller cannot obtain this authority unless it is unlocked.	Aircraft supports to be connected with two remote controllers simultaneously. Both of the two remote controllers can be used to control the aircraft and the gimbal. The control authority can be flexibly switched between the two remote controllers. Besides, if the aircraft control authority is locked with one remote controller, the other remote controller cannot obtain this authority unless it is unlocked.
Strong	Primary Flight Display	The ground station software can display real-time information about aircraft speed, altitude, orientation, and gimbal orientation, etc.	The ground station software can display real-time information about aircraft speed, altitude, orientation, and gimbal orientation, etc.
Strong	Primary Flight Display	The ground station software can display wind speed and direction in real time	The ground station software can display wind speed and direction in real time
Strong	Primary Flight Display	The ground station software can display the map of obstacle in the front, rear, left, and right of aircraft. It support to set obstacle warining distance, and provide voice reminders when there are obstacles within the distance.	The ground station software can display the map of obstacle in the front, rear, left, and right of aircraft. It support to set obstacle warining distance, and provide voice reminders when there are obstacles within the distance.
Strong	Hot-swappable Battery	The aircraft supports hot-swappable batteries. No need to power on and power off the aircraft during battery replacement.	The aircraft supports hot-swappable batteries. No need to power on and power off the aircraft during battery replacement.
Strong	Health Management System	The aircraft can record the total flight time, total flight times, and total flight distance, accumulated from factory date. The records can be viewed through the remote controller APP.	The aircraft can record the total flight time, total flight times, and total flight distance, accumulated from factory date. The records can be viewed through the remote controller APP.
Strong	Health Management System	The remote controller APP can display the health status of key aircraft modules and save abnormal records.	The remote controller APP can display the health status of key aircraft modules and save abnormal records.
Strong	Waypoint 2.0	Mark waypoints on the map, and then edit the waypoint actions and flight route altitude, speed and other parameters to achieve automatic flight.	Mark waypoints on the map, and then edit the waypoint actions and flight route altitude, speed and other parameters to achieve automatic flight.
Strong	Waypoint 2.0	The flight route can be saved as KML file, which can be imported and exported.	The flight route can be saved as KML file, which can be imported and exported.
Strong	Waypoint 2.0	Waypoint height can be set as absolute height/ relative height	Waypoint height can be set as absolute height/ relative height
Strong	Waypoint 2.0	Support to take pictures and videos by multiple gimbals, at the same waypoint.	Support to take pictures and videos by multiple gimbals, at the same waypoint.
Strong	Waypoint 2.0	It support to add no less than 10,000 waypoints in a single flight route.	It support to add no less than 10,000 waypoints in a single flight route.
Strong	Waypoint 2.0	It supports to record the current position of the aircraft as a waypoint, and set the flight speed and altitude, plan the flight mission.	It supports to record the current position of the aircraft as a waypoint, and set the flight speed and altitude, plan the flight mission.
Strong	AI Spot-Check	It supports recording a flight mission through the remote controller APP, frame the object of interest on the photos taken during the flight mission. When the flight mission is executed in next time, the aircraft supports advanced algorithms to detect and find the object of interest and take precise pictures, to realized consistent photo acquisition. Besides, it supports to check the photos on the remote controller APP.	It supports recording a flight mission through the remote controller APP, frame the object of interest on the photos taken during the flight mission. When the flight mission is executed in next time, the aircraft supports advanced algorithms to detect and find the object of interest and take precise pictures, to realized consistent photo acquisition. Besides, it supports to check the photos on the remote controller APP.
Strong	Smart Track	The aircraft can automatically adjust gimbal, to tack a defined object such as vehicles, people, and boats. Besides, the system can automatically identify vehicles, people, and boats. Pilot can also manually select interest targets.	The aircraft can automatically adjust gimbal, to tack a defined object such as vehicles, people, and boats. Besides, the system can automatically identify vehicles, people, and boats. Pilot can also manually select interest targets.
Strong	Smart Track	It supports gimbal follow mode and gimbal free mode. In gimbal follow mode, track the target by adjusting aircraft orientation. In gimbal free mode, track the target by adjusting gimbal orientation.	It supports gimbal follow mode and gimbal free mode. In gimbal follow mode, track the target by adjusting aircraft orientation. In gimbal free mode, track the target by adjusting gimbal orientation.
Strong	Smart Track	It supports auto-zoom function, which helps to keep the subject centered in the frame for optimal viewing	It supports auto-zoom function, which helps to keep the subject centered in the frame for optimal viewing
Strong	Smart Track	Support user to pin a point using laser rangefinder, this point can be shown on the map of remote controller, camera view, FPV camera view, and the map of UAV management platform. It can also be shared to third-party applications.	Support user to pin a point using laser rangefinder, this point can be shown on the map of remote controller, camera view, FPV camera view, and the map of UAV management platform. It can also be shared to third-party applications.
Middle	UAV Management Platform	The aircraft can be connected to UAV management platform. It supports to login the platform, check the position and flight parameters of multiple drones, check the historical flight records, manage drones and fleets.	The aircraft can be connected to UAV management platform. It supports to login the platform, check the position and flight parameters of multiple drones, check the historical flight records, manage drones and fleets.
Middle	Limit Flight Height and Distance	Support to set the limitation of flight height and flight distance, through the remote controller APP.	Support to set the limitation of flight height and flight distance, through the remote controller APP.
Middle	Precision Landing	Support accurately land to take-off point, with one click.	Support accurately land to take-off point, with one click.
Middle	Low Battery Return to Home	The battery level is shown on the ground station software in real time. When the battery level is low, the ground station software can prompt warnings, to inform the user to perform return-to-home. If the user does not response within the given time, the aircraft will automatically return home.	The battery level is shown on the ground station software in real time. When the battery level is low, the ground station software can provide warnings, to inform the user to perform return-to-home. If the user does not response within the given time, the aircraft will automatically return home.
Middle	Battery Level Display	Support display current aircraft battery level and remaining flight time on remote controller APP. Prompt low battery warning information for user.	Support display current aircraft battery level and remaining flight time on remote controller APP. Prompt low battery warning information for user.
Middle	Failsafe Return to Home	When the remote controller and aircraft are disconnected during the flight, the aircraft can automatically terminate the flight mission and return to home. During the return flight, if the connection between aircraft and remote controller comes to normal, user can cancel the return to home mission, through the remote controller.	When the remote controller and aircraft are disconnected during the flight, the aircraft can automatically terminate the flight mission and return to home. During the return flight, if the connection between aircraft and remote controller comes to normal, user can cancel the return to home mission, through the remote controller.
Strong	ESC Buzzing	Support to turn on the ESC buzzing function through the remote controller APP, to find the aircraft in unexpected situations.	Support to turn on the ESC buzzing function through the remote controller APP, to find the aircraft in unexpected situations.
Strong	Aerial Photography	Support to plan aerial photography flight mission through remote controller APP. According to the selected survey area and camera parameters set by the user, the flight mission can be automatically planned by remote controller APP. Pilot can perform the mission for aerial photography. Besides, the flight mission can be saved locally.	Support to plan aerial photography flight mission through remote controller APP. According to the selected survey area and camera parameters set by the user, the flight mission can be automatically planned by remote controller APP. Pilot can perform the mission for aerial photography. Besides, the flight mission can be saved locally.
Middle	Aerial Photography	It supports importing the captured photos into 2D and 3D reconstruction software on the computer, to generate 2D map and 3D model of the photographed area.	It supports importing the captured photos into 2D and 3D reconstruction software on the computer, to generate 2D map and 3D model of the photographed area.
Strong	SDK Capability	Support development kit for mobile terminal, on-board equipment, and 3rd party payload. It also supports power supply and communication interface, for 3rd party secondary development and integration.	Support development kit for mobile terminal, on-board equipment, and 3rd party payload. It also supports power supply and communication interface, for 3rd party secondary development and integration.
	Intelligent Battery
Strong	Battery Station	The battery station should support multiple battery ports to charge up to eight aircraft batteries and four remote controller batteries.	The battery station should support multiple battery ports to charge up to eight aircraft batteries and four remote controller batteries.
Strong	Battery Station	The battery station should be equipped with a portable lever	The battery station should be equipped with a portable lever
Strong	Battery Station	The battery station is equipped with LED indicator and buzzer to indicate battery status and alarm.	The battery station is equipped with LED indicator and buzzer to indicate battery status and alarm.
Strong	Charging Speed	Charge 2 batteries to full capacity within 1 hour	Charge 2 batteries to full capacity within 1 hour
Strong	Pairing Batteries	The aircraft is designed with dual batteries. If two batteries with a significant difference in battery life are installed and powered on, a prompt will pop up in the ground station software, to recommend user to replace the batteries to a pair with similar performance.	The aircraft is designed with dual batteries. If two batteries with a significant difference in battery life are installed and powered on, a prompt will pop up in the ground station software, to recommend user to replace the batteries to a pair with similar performance.
Strong	Dual Battery	In the event that one battery fails, the drone can still return home safely with the other battery.	In the event that one battery fails, the drone can still return home safely with the other battery.
Strong	Self-discharge	In the case that the battery power level is high, and its storage time is longer than the Self-Discharge time (can be set as 1 day to 10 days), then the battery will automatically be discharged to 60% in order to protect battery and extend battery life.	In the case that the battery power level is high, and its storage time is longer than the Self-Discharge time (can be set as 1 day to 10 days), then the battery will automatically be discharged to 60% in order to protect battery and extend battery life.
Middle	Battery Level Display	The battery supports indicator, which can display the current battery level.	The battery supports indicator, which can display the current battery level.
Middle	Overvoltage Charging Protection	Support overcharge protection function. If the charging voltage is too high, the charging device can disconnect the charging circuit.	Support overcharge protection function. If the charging voltage is too high, the charging device can disconnect the charging circuit.
Middle	Overcurrent Charging Protection	Support overcharge protection function. If the charging current is too large, the charging device can disconnect the charging circuit.	Support overcharge protection function. If the charging current is too large, the charging device can disconnect the charging circuit.
Strong	Battery Self-heating	When operating in low-temperature conditions, the battery will automatically warm up after power on if it is installed into the aircraft.	When operating in low-temperature conditions, the battery will automatically warm up after power on if it is installed into the aircraft.
Middle	Over-discharge Protection	When the battery voltage drops to a certain value, the battery can stop discharging.	When the battery voltage drops to a certain value, the battery can stop discharging.
Strong	Cell Damage Detection	If the battery cell is damaged or the cells are seriously unbalanced, groud station software can prompt warning information for user.	If the battery cell is damaged or the cells are seriously unbalanced, groud station software can prompt warning information for user.
