DJI Inspire 2 Standard Kit with Zenmuse X5S Gimbal & MFT 15mm/1.7 ASPH Lens
Product Highlights:
- Zenmuse X5S Gimbal Camera with 15mm Lens
- CineCore 2.0 Image Processing
- Supports CinemaDNG and ProRes Recording
- Dual-Battery Design
- Accelerates to 50 mph in 4 Seconds
- 58 mph Maximum Velocity
- Advanced Obstacle Sensing
- 2-Axis Stabilized FPV Camera
- DJI Inspire 2 Standard Kit with Zenmuse X5S Gimbal & MFT 15mm/1.7 ASPH Lens
- Remote Control (Transmitter)

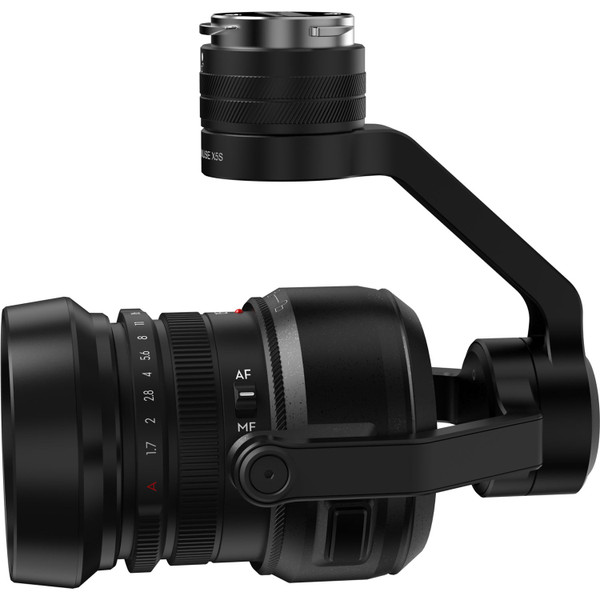

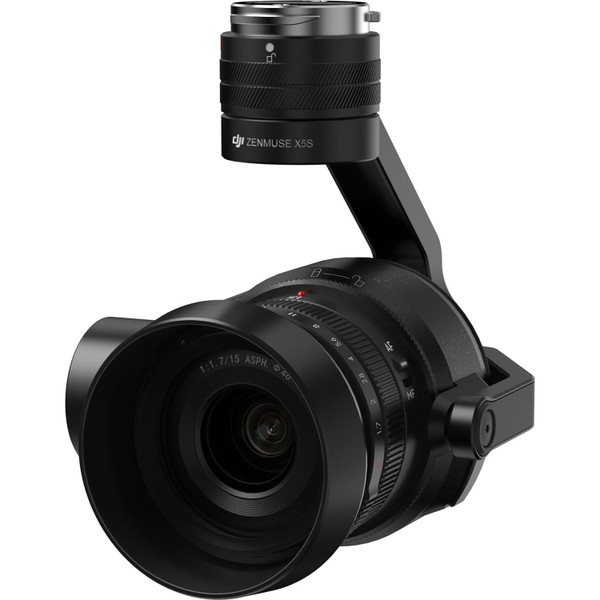

- Zenmuse X5S with MFT 15mm Lens
- 4 x Propeller Pair
- 2 x Intelligent Flight Battery
- Battery Charger
- Charging Hub
- Power Cable
- USB Cable
- microSD Card
- Vision System Calibration Plate
- 3 x Gimbal Damper
- Propeller Mounting Plates
- Carrying Case
- 4 x Battery Insulation Sticker
- Limited 1-Year Warranty on Aircraft (Excluding Gimbal, Camera, and Battery)
- Limited 6-Month or 200-Cycle Warranty on Battery (Whichever Comes First)
DJI Inspire 2 Standard Kit with Zenmuse X5S Gimbal & MFT 15mm/1.7 ASPH Lens
DJI CP.IN.00000014.01 Inspire 2 Standard Kit with Zenmuse X5S Gimbal & MFT 15mm/1.7 ASPH Lens

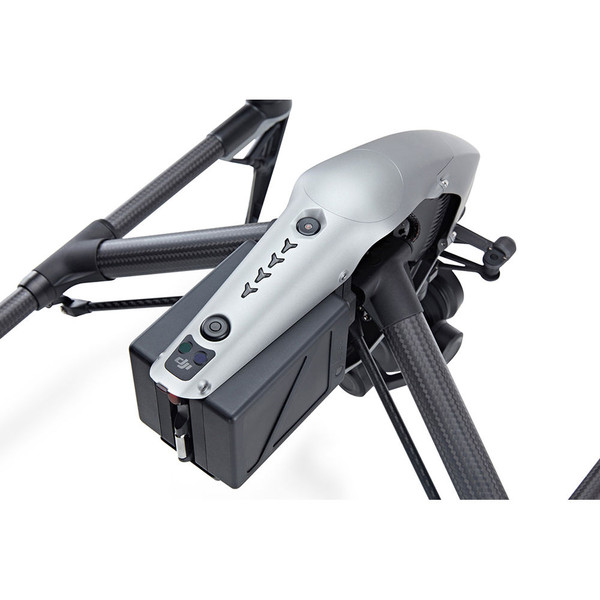

With the Inspire 2 Standard Kit with Zenmuse X5S Gimbal & MFT 15mm/1.7 ASPH Lens from DJI, you get a complete aerial imaging solution right out of the box. Included with the Inspire 2 is the Zenmuse X5S gimbal camera with a 15mm Micro Four Thirds lens. This provides you with the capability of capturing footage at up to 5.2K resolution at 30 fps in CinemaDNG and Apple ProRes. It is also capable of recording up to 4K video at a smooth 60 fps. Images can be captured at up to 21MP, even in 20 fps DNG burst shooting mode, which helps ensure you always get the perfect shot. As you fly the magnesium-aluminum-clad Inspire 2, all the recording functionality is processed by its CineCore 2.0 image-processing engine.
Not all the power to be found in the Inspire 2 is in the recording functionality. DJI beefed up the flight capabilities of the Inspire 2. Able to accelerate to 50 mph in 4 seconds and reach a top speed of 58 mph, the Inspire 2 can follow fast-moving subjects for dramatic sports and action footage. The flight prowess of the Inspire 2 doesn't come at the expense of battery life. With the two included LiPo batteries onboard, up to 27 minutes of flight time can be had on a full charge.
Advanced obstacle avoidance has also made its way to the Inspire 2. Built into DJI's FlightAutonomy system, objects in front of, below, and above the quadcopter can be detected and avoided automatically. The Inspire 2 can even remember flight paths in case of an emergency return-to-home without GPS enabled. What's more, using the onboard 2-axis stabilized FPV camera, the pilot can navigate the Inspire 2 without being limited to the gimbal camera's field of view.
| DJI Inspire 2 Specs |
|---|
| Performance |
|---|
| Maximum Takeoff Weight |
8.8 lb / 4 kg |
| Maximum Horizontal Speed |
58 mph / 93.3 km/h |
| Maximum Ascent Speed |
19.7 ft/s / 6 m/s |
| Maximum Descent Speed |
29.5 ft/s / 9 m/s |
| Flight Ceiling |
8200' / 2499.4 m |
| Maximum Flight Time |
27 Minutes |
| Maximum Tilt Angle |
40° |
| Hovering Accuracy |
±1.64' / 0.50 m Vertical with GPS
±4.92' / 1.50 m Horizontal with GPS |
| Vision System |
|---|
| Vision System |
Downward, Forward |
| Velocity Range |
32.8 ft/s / 10 m/s at 6.56' / 2 m |
| Maximum Altitude |
33' / 10 m |
| Obstacle Sensory Range |
2.3 to 98.4' / 0.7 to 30.0 m |
| Forward Field of View |
60° (Horizontal)
54° (Vertical) |
| Operating Environment |
Surface with Clear Patterns at >15 lux |
| Infrared Sensing System |
|---|
| Obstacle Sensory Range |
0.0 to 16.4' / 0.0 to 5.0 m |
| Field of View |
5° (Vertical) |
| Remote Controller / Transmitter |
|---|
| Operating Frequency |
2.4 GHz (2.400 - 2.483)
5.8 GHz (5.725 - 5.850) |
| Maximum Operating Distance |
4.3 Miles / 6.9 km at 2.4 G
4.3 Miles / 6.9 km at 5.8 G |
| Transmitter Power |
26 dBm (2.4 G)
28 dBm (5.8 G) |
| Output Power |
9 W |
| USB Output Power |
iOS: 5.2 VDC, 1 A
Android: 5.2 VDC, 1.5 A |
| Battery Chemistry |
Lithium-Ion Polymer (LiPo) |
| Battery Capacity |
6000 mAh |
| Operating Temperature |
4 to 104°F / -15 to 40°C |
| Camera |
|---|
| Image Sensor |
4/3" CMOS Sensor |
| Sensor Resolution |
Actual: 21 Megapixel Megapixel |
| Maximum Aperture |
f/1.7 |
| ISO Range |
Photo: 100 to 25,600
Video: 100 to 6400 |
| Shutter Speed |
Electronic Shutter
1/8000 to 8 Seconds |
| Video Format |
5280 x 2972p at 23.98/24/25/29.97 fps (MOV/MP4)
5280 x 2160p at 23.98/24/25/29.97 fps (MOV/MP4)
4096 x 2160p at 23.98/24/25/29.97 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
4096 x 2160p at 50/59.94 fps (100 Mb/s MOV/MP4 via H.264/AVC)
3840 x 2160p at 23.98/24/25/29.97/48/50/59.94 fps (100 Mb/s MOV/MP4 via H.264/AVC)
3840 x 2160p at 23.98/24/25/29.97 fps (100 Mb/s MOV/MP4 via H.265/HEVC)
3840 x 1572p at 23.98/24/25/29.97 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
2720 x 1530p at 23.98/24/25/29.97 fps (80 Mb/s MOV/MP4 via H.264/AVC)
2720 x 1530p at 48/50/59.94 fps (100 Mb/s MOV/MP4 via H.264/AVC)
2720 x 1530p at 23.98/24/25/29.97 fps (65 Mb/s MOV/MP4 via H.265/HEVC)
2720 x 1530p at 48/50/59.94 fps (80 Mb/s MOV/MP4 via H.265/HEVC)
1920 x 1080p at 23.98/24/25/29.97 fps (60 Mb/s MOV/MP4 via H.264/AVC)
1920 x 1080p at 48/50/59.94 fps (80 Mb/s MOV/MP4 via H.264/AVC)
1920 x 1080p at 120 fps (100 Mb/s MOV/MP4 via H.264/AVC)
1920 x 1080p at 23.98/24/25/29.97 fps (50 Mb/s MOV/MP4 via H.265/HEVC)
1920 x 1080p at 48/50/59.94 fps (65 Mb/s MOV/MP4 via H.265/HEVC)
1920 x 1080p at 120 fps (100 Mb/s MOV/MP4 via H.265/HEVC) |
| Still Image Support |
JPEG / DNG
15.6 MP (5280 x 2970)
20.9 MP (5280 x 3956) |
| Photo Modes |
Burst Shooting |
| Gimbal |
|---|
| Number of Axes |
3 (Pitch, Roll, Yaw) |
| Angular Speed |
Pitch: 180°/s
Roll: 180°/s
Yaw: 270°/s |
| Flight Battery |
|---|
| Battery Chemistry |
Lithium-Ion Polymer (LiPo) |
| Capacity |
4280 mAh / 97.58 Wh |
| Battery Configuration |
6 S / 22.8 V |
| Weight |
1.1 lb / 0.5 kg |
| Charger |
|---|
| Output Voltage |
26.1 V |
| Power Rating |
180 W |
| General |
|---|
| Number of Rotors |
4 |
| Operating Temperature |
14 to 104°F / -10 to 40°C |
| Diagonal Size |
23.8" / 60.5 cm (Without Propellers) |
| Weight |
7.25 lb / 3.29 kg (Including Battery) |
| Packaging Info |
|---|
| Package Weight |
28.25 lb |
| Box Dimensions (LxWxH) |
25.5 x 25.4 x 12.1" |
