Core SWX Powerbase EDGE 49Wh 14.8V Cine V-Mount Battery Kit for BMPCC 6K Pro
Product Highlights:
- 14.8V, 49Wh, Lithium-Ion V-Mount Battery
- L-Series Dummy Battery Power Cable
- D-Tap Wall Charger
- 8A Continuous Draw
- 7.4V Regulated DC Barrel Output
- 2 x 14V D-Tap & 2 x 5V USB Outputs
- SmartTap Output to Carry Battery Data
- Runtime LCD, Button-Activated Backlight
- 1/4"-20 Quick Release Mounting Plate
- Core SWX Powerbase EDGE V-Mount Battery
- Quick Release Plate
- Limited 1-Year Warranty
- Core SWX Powerbase EDGE Cable for Sony L-Series Devices
- Limited 1-Year Warranty
- Core SWX PB70C15 D-Tap Wall Charger
Core SWX Powerbase EDGE 49Wh 14.8V Cine V-Mount Battery Kit for BMPCC 6K Pro
Core SWX PBE-BMPC6KP Powerbase EDGE 49Wh 14.8V Cine V-Mount Battery Kit for BMPCC 6K Pro
Power your Blackmagic Design Pocket Cinema Camera 6K Pro on a long shooting day with this Powerbase EDGE 49Wh 14.8V Cine V-Mount Battery Kit from Core SWX. The kit includes the Powerbase EDGE V-mount battery, an L-series dummy battery power cable for the Blackmagic Design Pocket Cinema Camera 6K Pro, and a D-Tap wall charger.
The DC barrel cable plugs into the 7.4 VDC barrel output on the battery to power the camera using the L-series dummy battery. The battery also features two 12V D-Tap outputs and two 5A USB Type-A outputs to also power accessories, and one of the outputs features SmartTap technology to send accurate battery data to your camera LCD or EVF. It also features a storage mode, so you can manually deplete the battery for safe travel. A quick release plate is included, so you can easily mount the battery onto a rig using a 1/4"-20 screw. To charge the battery, the included D-Tap wall charger plugs a battery D-Tap connector.
Core SWX Powerbase EDGE V-Mount Battery
Keep your power-hungry cameras and production gear operating for long shoots with this high-capacity Powerbase EDGE V-Mount Battery from Core SWX. This follow-up to the popular Powerbase 70 lithium-ion battery features a 14.8V, 49Wh capacity and 8A continuous draw to power your gear for up to 8.25 hours (e.g. a small DSLR/mirrorless camera) on a full charge. In addition to the V-mount, which allows it to be used with all cameras and gear supporting a V-mount battery, the Powerbase EDGE has a 7.4V regulated DC barrel output, two 14 VDC D-Tap outputs, and two 5 VDC USB ports. One of the D-Tap outputs is classified as "SmartTap", which allows you to pass the battery data to your camera.
Using a compatible, separately available Powerbase EDGE power cable or dummy battery, you can connect the battery to most mirrorless and DSLR cameras via the regulated 7.4 VDC output. The SmartTap output, which is a Core SWX innovation, is a standard D-Tap connection with additional contacts inside that communicate SMBUS/smart battery data to compatible cameras. You can use the SmartTap and D-Tap ports to simultaneously provide 12 VDC power to a camera using optional D-Tap cables, as well as to power an accessory.
The USB ports can be used simultaneously with any of the other power options to power small 5 VDC accessories such as mobile devices. The battery can be charged in standard Core SWX V-mount chargers, and either D-Tap port also functions as a charging port and supports Core SWX D-Tap chargers. The battery also features a "storage mode" that allows you to deplete the battery quickly for safe travel.

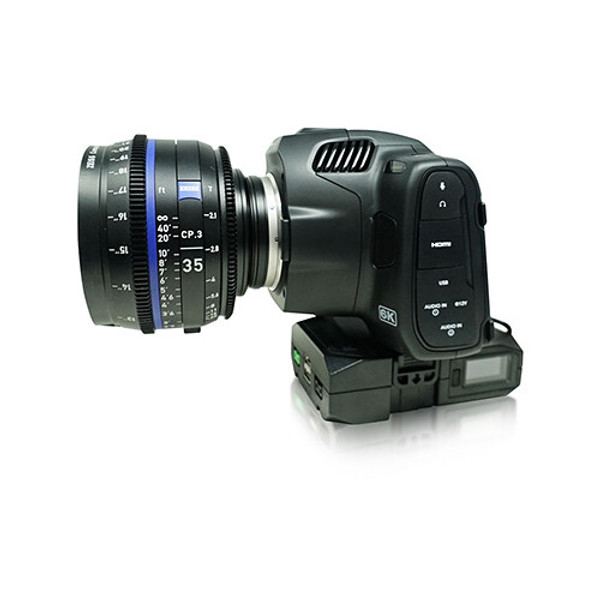

The Powerbase EDGE has an LCD on the side that provides runtime in minutes, and it's easy to read in dark environments using its button-activated backlight. Like the Powerbase 70, the Powerbase EDGE comes with a small quick release adapter that provides a convenient way of attaching the battery to cheese plates and other camera supports. It secures onto the middle of the battery and provides a 1/4"-20 mounting screw. This allows you to mount the battery directly onto the bottom of your camera, or it can mount onto a battery slide or cage.
Core SWX Powerbase EDGE V-Mount Battery Specs |
General |
Mount / Series Type |
V-Mount |
Chemistry |
Lithium-Ion |
Capacity (Wh) |
49 Wh |
Amp-Hours |
3.3 Ah |
Output Voltage |
14.8 VDC |
Maximum Load |
8 A |
Accessory Port |
2 x D-Tap Input/Output 14 VDC Regulated 2 x USB Type-A Output 5 VDC Regulated 1 x 2.5 mm Barrel Output 7.4 Regulated |
USB Output |
5 V |
Accessory Mounting Thread |
1 x 1/4"-20 Female |
Dimensions (W x H x D) |
5.1 x 3.6 x 1.6" / 12.95 x 9.14 x 4.06 cm |
Weight |
1.3 lb / 0.59 kg |
Packaging Info |
Package Weight |
1.5 lb |
Box Dimensions (LxWxH) |
8 x 6.9 x 2.9" |
Core SWX Powerbase EDGE Cable For Sony L-Series Devices Specs |
Connector |
Compatible with Core SWX Powerbase EDGE battery |
Dummy Battery |
Sony L-Series |
Length |
6" / 15.2 cm |
Packaging Info |
Package Weight |
0.055 lb |
Box Dimensions (LxWxH) |
5.75 x 3.45 x 1.2" |
Core SWX PB70C15 D-Tap Wall Charger Specs |
Output Connector |
D-Tap |
Electrical |
AC Input Power |
90 to 240 VAC, 50 / 60 Hz |
Chemistry |
Lithium-Ion |
General |
Dimensions |
3 x 1 x 0.75" / 7.6 x 2.5 x 1.9 cm |
Weight |
0.4 lb / 181 g |
Packaging Info |
Package Weight |
0.42 lb |
Box Dimensions (LxWxH) |
5.8 x 3.55 x 2.2" |
