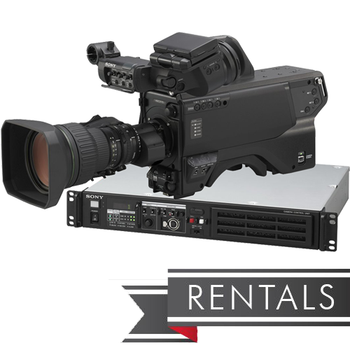

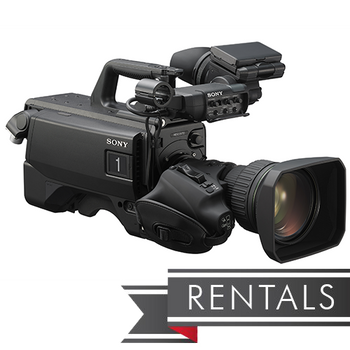

BSTOCK Sony HDC-3170 HD Digital Triax Portable System Camera Head Only

BSTOCK Sony HDC-3170 HD Digital Triax Portable System Camera Head Only

Product Highlights:

• 1080p HD/SD Digital Triax Broadcast Camera
• 4K Output from CCU (optional)
• Supports Triax Cable Runs Up to 5,900 ft
• 2/3" Type CMOS Sensor
• F12 Sensitivity for 1080/59.94i, -62dB
• Global Shutter eliminates “Jello effect” and banding noise
• Large Lens Support via Optional Adapters
• ND/CC Dual Optical Servo Filters
• Records 1080p59.94/50, 720p, 1080PsF
• 16-Bit A/D Converter
• Works with HDCU-3170 Triax CCU
• 4K Output option from CCU (ask Omega Sales)

• Sony HDC-3170 1080p 2/3” CMOS Digital Triax Portable Camera Head Only

BSTOCK Sony HDC-3170 HD Digital Triax Portable System Camera Head Only

BSTOCK Sony HDC-3170 HD Digital Triax Portable System Camera Head Only
Raising the standard in creative flexibility The HDC-3170 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the versatility of digital triax transmission.

Next-generation imaging Capture premium pictures with the world's first 2/3-inch HD CMOS sensor with global shutter technology that eliminates the "jello effect" and banding noise. This allows the HDC-3170 to capture pristine images with low noise and excellent sensitivity (F12 at 1080/59.94i or F13 at 1080/50i).

More format flexibility The HDC-3170 can output 3G-SDI signals in a range of formats right up to 1080/50p. So you can benefit from maximum production convenience — and your viewers can enjoy premium picture quality.

Next-generation digital triax transmission The HDC-3170 supports the latest third generation digital triax-based camera/CCU transmission system. This can carry high-quality Full HD images over distances up to 1,800m* while integrating smoothly into current triax infrastructures.

*With 0.57 in diameter triax cable. Maximum transmission distance varies with camera system configuration.

Get the look Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key saturation ensures rich, vibrant colors in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.

General
Power requirements	DC 240 V, 1.05 A (max.)
Operating temperature	-4°F to 113°F (-20°C to +45°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Mass	Approx. 11 lb 0.4 oz (5.0 kg)
Imager	2/3-inch type CMOS sensor with global shutter
Method	3-CMOS, RGB
Sensitivity	F12 with 1080/59.94i F13 with 1080/50i (at 2,000 lx with 89.9% reflectance)
Signal-to-noise ratio	-62 dB or higher
Horizontal resolution	1,000 TV lines (at center of screen), 5% or higher modulation
Geometric distortion	Negligible (not including lens distortion)
Spectrum system	F1.4 prism
Built-in filters	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
CCU	Triax connector (x1)
LENS	12-pin (x1)
VF	20-pin (x1)
MIC 1 IN	XLR 3-pin, female (x1)
AUDIO IN CH1, CH2	XLR 3-pin, female (x1 each) AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced AUDIO switch for LINE: 0 dBu, balanced
INTERCOM 1, INTERCOM 2	XLR 5-pin, female (x1)
EARPHONE	4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)
DC IN	XLR 4-pin (x1), DC 10.5 to 17 V
DC OUT	4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹
SDI 1	SDI 1
SDI 2	No
SDI MONI	BNC (x1)
TEST OUT	BNC (x1)
PROMPTER/GENLOCK	BNC (x1) PROMPTER 1 Vp-p, 75 Ω GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)
PROMPTER2	No
RET CTRL	6-pin (x1)
REMOTE	8-pin (x1)
TRACKER	12-pin (x1)
CRANE	No
USB	USB 2.0 Type A 4-pin (x1) (for connecting USB drive)
NETWORK TRUNK	No
Supplied accessories	Before Using This Unit (1), Operating Instructions (CD-ROM) (1), Cable clamp belt (1 set), Screws (+B3×8) (2), Attached label (1), Camera number label (1)
