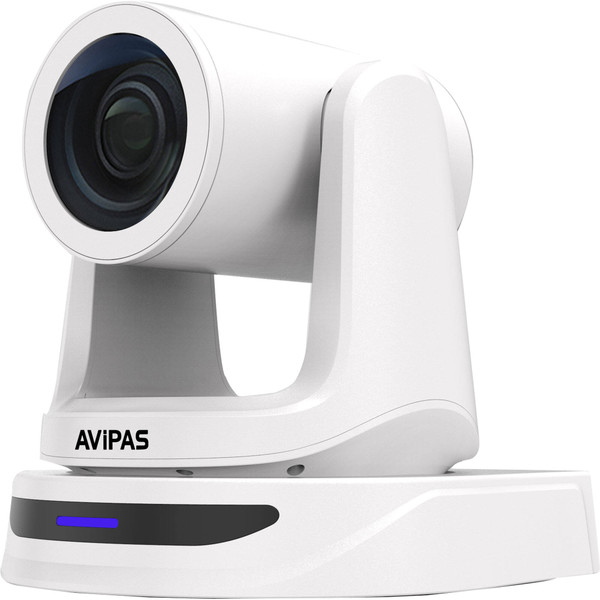

AViPAS HDMI/NDI HX PTZ Camera with PoE and 20x Zoom (White)
Product Highlights:
- 1080p60 Output over HDMI & IP / NDI|HX
- Up to 1080p30 IP H.265/264 Streaming
- 20x Optical Zoom, Manual or Auto Focus
- 3.23 to 60° Angle of View
- Dual IP Stream Output, 128 Presets
- 2D/3D Digital Noise Reduction
- IP & Serial Control via VISCA, Pelco-P/D
- PoE+ Support, 3.5mm Audio Line Input
- AViPAS HDMI/NDI HX PTZ Camera with PoE and 20x Zoom (White)
- Power Adapter
- Power Cable
- RS-232 Cable
- IR Remote Control
- Limited 2-Year Warranty
AViPAS HDMI/NDI HX PTZ Camera with PoE and 20x Zoom (White)
AViPAS AV-2000W HDMI/NDI HX PTZ Camera with PoE and 20x Zoom (White) Capture professional HD video for your video conferencing, education, house of worship, or other video application with this white HDMI/NDI|HX PTZ Camera with PoE and 20x Zoom from AViPAS. The remotely controllable PTZ camera allows you to capture up to 1080p60 resolution and features HDMI and IP outputs, and it fits right into an NDI network with its built-in NDI|HX streaming support. It also supports up to 1080p30 with dual IP streams via its RJ45 interface. Featuring 20x optical zoom, it provides a 3.23 to 60° adjustable angle of view, a ±170° panning range, a ±90° tilting range, auto or manual focus, wide dynamic range, and serial control support.
The low-noise 1/2.8" CMOS sensor ensures a high signal-to-noise ratio while advanced 2D/3D noise-reduction technology further reduces image noise, so that an even sharper image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live Internet stream. There is also a 3.5mm audio line input on the back to input stereo audio into your streams and video output.
The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF, and VISCA-over-IP control, or by using the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 128 presets using an optional serial controller, or store 10 presets when using the included IR remote. You can power the camera using a networked PoE+ (Power-over-Ethernet) switch, or by using the included power adapter.
Key Features
- Up to 1080p60 output over HDMI and NDI|HX outputs
- Up to 1080p30 IP streaming; simultaneous dual-stream support
- 20x optical zoom
- ±170° panning, ±90° tilting
- Fast, accurate, and stable autofocus technology; manual focus also supported
- Low-noise 2.1MP CMOS sensor ensures high signal-to-noise ratio
- 2D/3D noise reduction technology further reduces noise while ensuring image sharpness
- Quiet PTZ mechanism
- H.265/H.264 compression
- 3.5mm line stereo audio input with support for AAC and LPCM encoding
- ONVIF and VISCA-over-IP control and RTMP/RTSP streaming protocol support with easy linking to common streaming media servers
- VISCA, Pelco-D, and Pelco-P communication protocols via RS-232 serial interfaces
- PoE+ (Power-over-Ethernet) IEEE 802.3af support
- Low-power sleep function
- 128 serial presets, 10 via IR remote
- Wide dynamic range
- White Balance: auto, manual, one push
| AViPAS AV-2000 Specs |
|---|
| Image Sensor |
|---|
| Image Sensor |
1-Chip 1/2.8" CMOS Sensor |
| Sensor Resolution |
Effective: 2.4 Megapixel (1920 x 1080) |
| Minimum Illumination |
0.1 Lux |
| Camera |
|---|
| Built-In ND Filter |
None |
| Flip / Mirror Support |
Image Flip |
| Lens |
|---|
| Optical Zoom Ratio |
20x |
| Focal Length |
4.9 to 98mm |
| Field of View |
Horizontal: 3.23 to 60° |
| Maximum Aperture |
f/1.5 to 3 |
| Focus Control |
Autofocus
Manual Focus |
| Video Output |
|---|
| Output Formats |
HDMI, RJ45: 1920 x 1080p at 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps |
| IP Streaming |
H.264, H.265, RTMP, RTSP: 1080p, 720p, 480p, 360p |
| IP Multi-Stream Support |
Simultaneous
H.264, H.265, MJPEG, ONVIF, RTMP, RTSP: 720p, 480p, 360p at 30p |
| Control |
|---|
| Presets |
128 |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 180° (-90 to 90°) |
| Tally Light |
No |
| Supported Control Protocols |
IP
IR
NDI
Pelco-D
Pelco-P
RS-232
VISCA |
| Interfaces |
|---|
| Video Output Connectors |
1 x HDMI Type A Female
1 x RJ45 (HX / NDI) Female |
| Audio I/O |
1 x 1/8" / 3.5 mm Mono Line Level Input |
| Control Interface |
1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output |
| Power |
|---|
| PoE Support |
PoE 802.3af |
| Power Connectors |
1 x JEITA (12 VDC) |
| Power Consumption |
Device: 11 W |
| General |
|---|
| Dimensions |
7.1 x 6.6 x 6.6" / 18 x 16.8 x 16.8 cm |
| Weight |
3.1 lb / 1.4 kg |
| Packaging Info |
|---|
| Package Weight |
6.2 lb |
| Box Dimensions (LxWxH) |
12.6 x 11 x 10.5" |
